Core Components: Gearbox
Application: Food
Type: Blister Packaging Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Food Shop, Beverage, Food
Showroom Location: United States, Germany, Mexico, Spain
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 3 Years
Condition: New
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V/220V 50Hz 60Hz
Place Of Origin: Zhejiang, China
Brand Name: Capsulcn
Dimension(L*W*H): 4200*650*1700mm
Weight: 1500 KG
Warranty: 3 Years
Key Selling Points: Automatic
Product Name: Liquid Blister Packing Machine
Keyword: Automatic Liquid Blister Packing Machine
Usage: Liquid Blister Sheet Packing
After-sales Service Provided: Service Machinery Overseas
Suitable For: Viscous Liquid
Material: Staninless Steel
Function: Blister Sealing Package
Certificate: CE ISO9001
Operation: Automatic Operation
Feature: High Accurency
Packaging: Export Standard Wood Pack
Transportation: Ocean,Land
Supply Ability: 50 Set/Sets per Month
Port: Shanghai/Ningbo
Payment Type: L/C,Western Union,T/T,MoneyGram

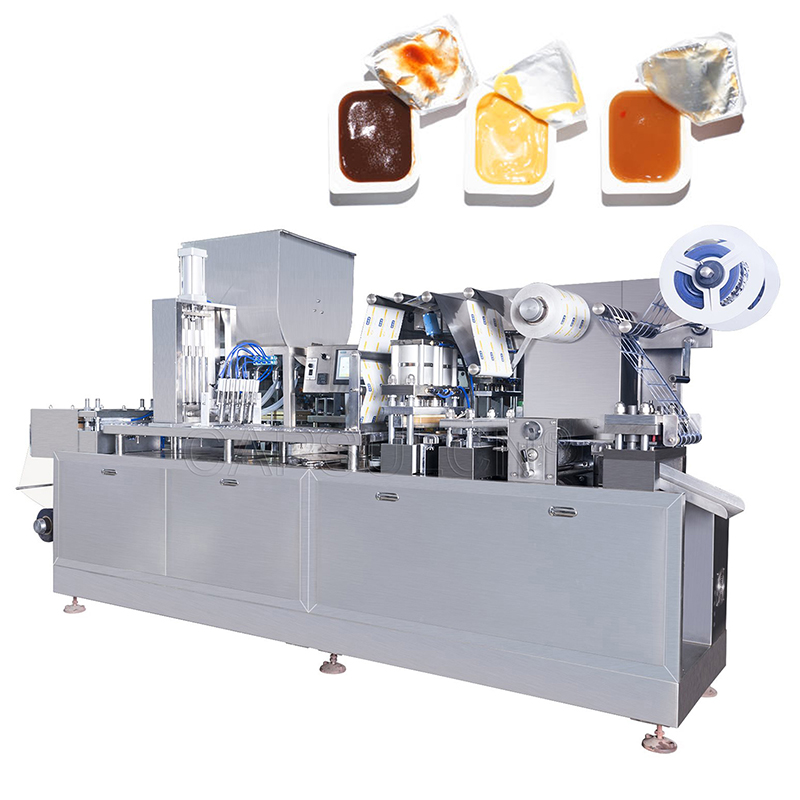

A fully automatic small butter liquid blister packing machine is a device used to package small quantities of butter or other liquid products in blister packs. The machine is designed to automatically form, fill, and seal blister packs containing butter or other liquid products.

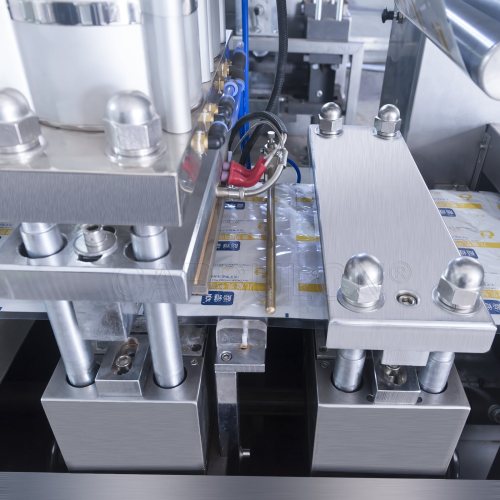

The machine typically consists of a feeding system, a forming station, a filling station, a sealing station, and a cutting station. The feeding system is responsible for feeding the blister packs into the machine, while the forming station shapes the blister packs to accommodate the butter or liquid product. The filling station is where the butter or liquid product is accurately dispensed into the blister packs. The sealing station then seals the blister packs, ensuring that the butter or liquid product is securely enclosed. Finally, the cutting station separates the blister packs from the machine, ready for further packaging or distribution.
| Punch speed | 10-25 times/min |
| Max. forming depth | Standard 26mm, Maximum 50mm |
| Air pressure | 0.6mpa-0.8mpa >0.3m3/min |
| Power | 380V/220V 50Hz 6kw |
| Main motor power | 1.5kw |
| Material types | PVC, PET, PS, composite film, aluminium foil |
| Material width | 260(330)mm |
| Mould cooling | tap water or recycled water 60L/h |
| Overall dimension | 2710*720*1600mm |
| Weight | 2000kg |
| (Don't Worry! We have several models. We can recommend you according to your requirement.) Contact us>> |
