Automatic Jam Blister Packaging Machine

Products Description

Automatic Liquid Capsule Blister Packing Machine

It is specially designed for medium size productions that require a high flexibility.

• Flat platen type forming and sealing, constant sealing.
• Pressure and temperature ensure a perfect blister.
• Heat forming and cold forming: PVC, PVC+PVDC, PVC/aclar, PP, ALU-ALU, etc.
• Easy changeover without tools.
• Up to 200 blisters/min.

Punch speed

10-25 times/min

Max. forming depth

Standard 26mm, Maximum 50mm

Air pressure

0.6mpa-0.8mpa >0.3m3/min

Power

380V/220V 50Hz 6kw

Main motor power

1.5kw

Material types

PVC, PET, PS, composite film, aluminium foil

Material width

260(330)mm

Mould cooling

tap water or recycled water 60L/h

Overall dimension

2710*720*1600mm

Weight

2000kg

(Don't Worry! We have several Models. We can recommend you according to your requirement.) Contact us>>

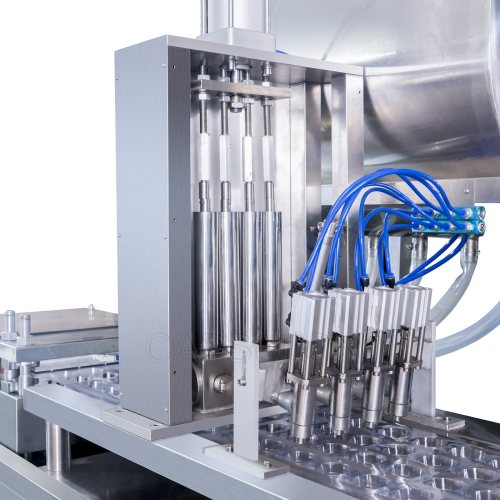

Details Images

Preparation before use

1. Equipment inspection: Before using the vacuum molding machine, a comprehensive inspection of the equipment is required to ensure that all parts of the equipment are in good condition, especially the oil, gas, water and other parts, to ensure that they do not affect the operation and safety of the equipment.
2. Material inspection: Before use, it is necessary to check whether the quality and proportion of the blister raw materials meet the requirements to ensure that the blister products can be produced normally.
3. Equipment cleaning: Before use, it is necessary to clean the equipment to ensure that the surface is clean and dry, so as not to affect product quality.
